Waterproof color LCD meter H6C for e-bikes, SM/weatherproof connector, smart e-bike screen with USB.

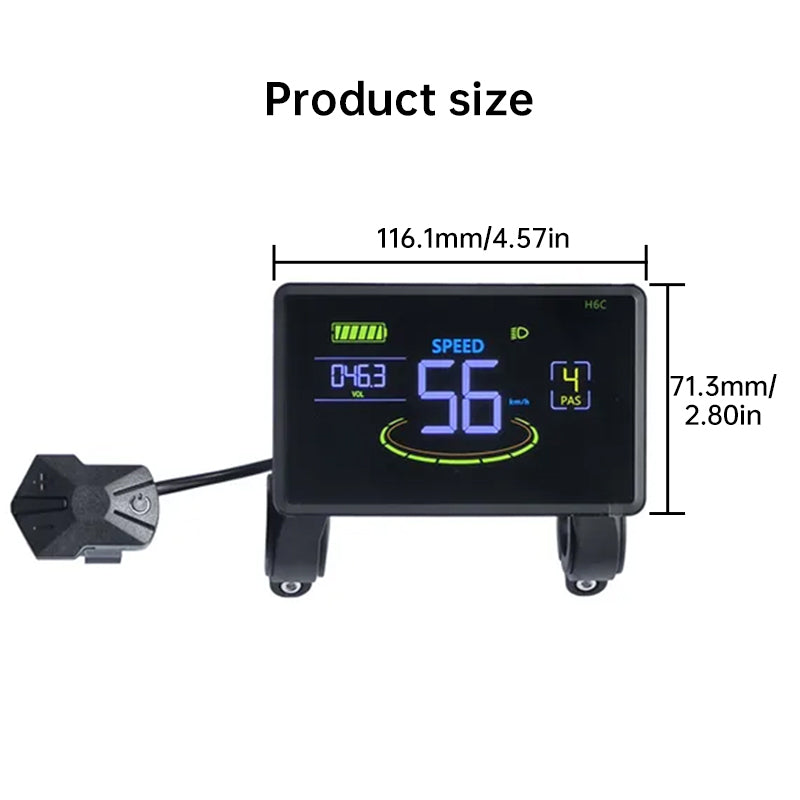

1. Dimensions/Size

 L 116mm, W 71.3mm, H 87mm

2. Weight

251g

3. Material

ABS + TR90/PVC

4. Power Supply

DC 24V/36V/48V/60V

5. Working Current

12mA

6. Shutdown Leakage Current

＜1uA

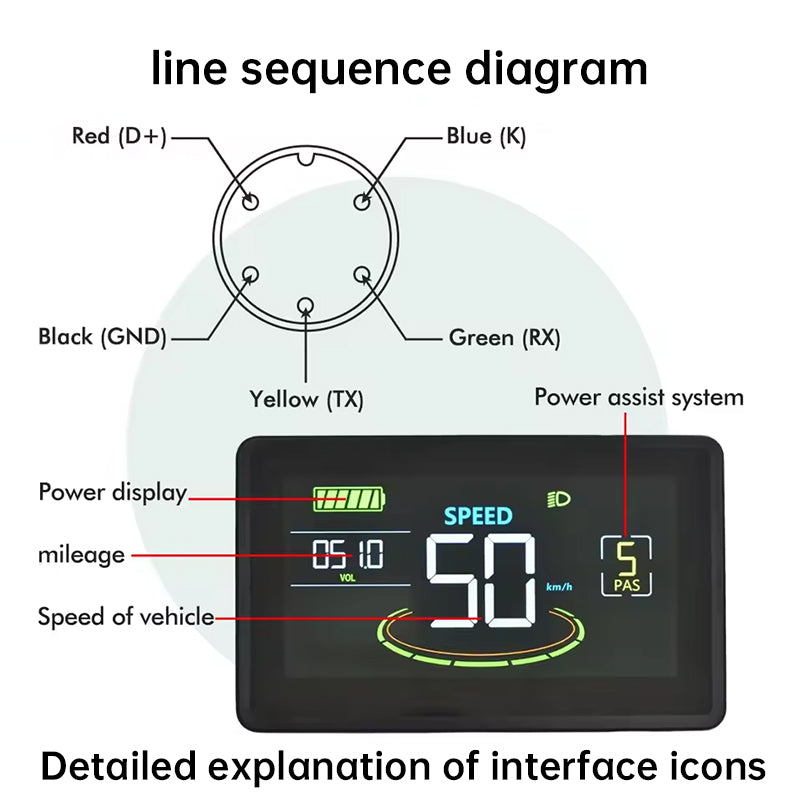

7. Wiring

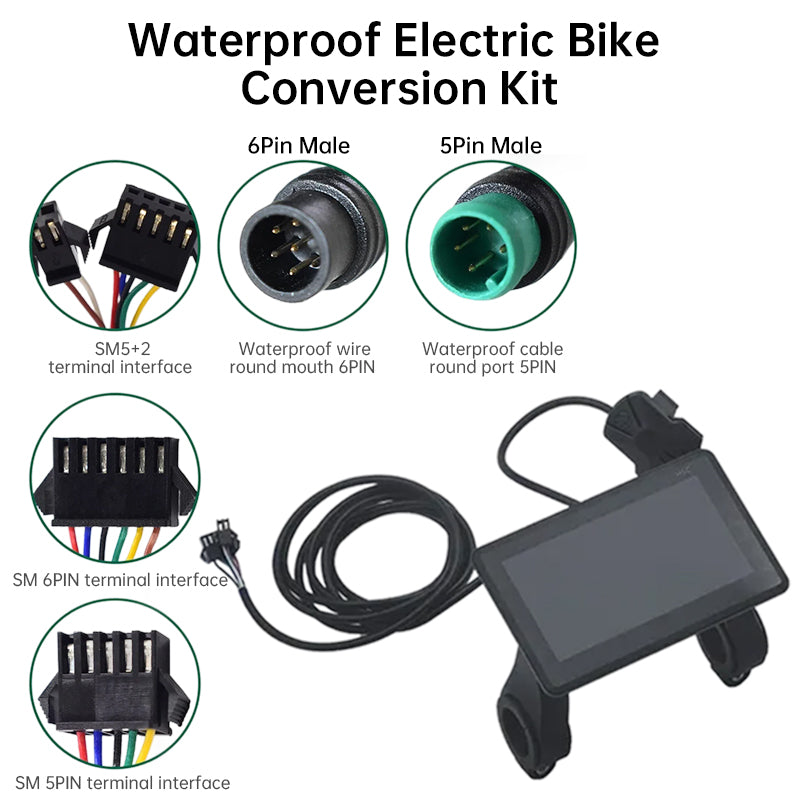

5 + 7 - core sheathed wire (5Pin waterproof plug, male end; 7Pin aviation plug), USB charging cable(5V/500mA)

8. Protocol  UART (Baud rate 9600)

9. Waterproof Grade  IP64

10. Operating Temperature  -20℃ - 70℃

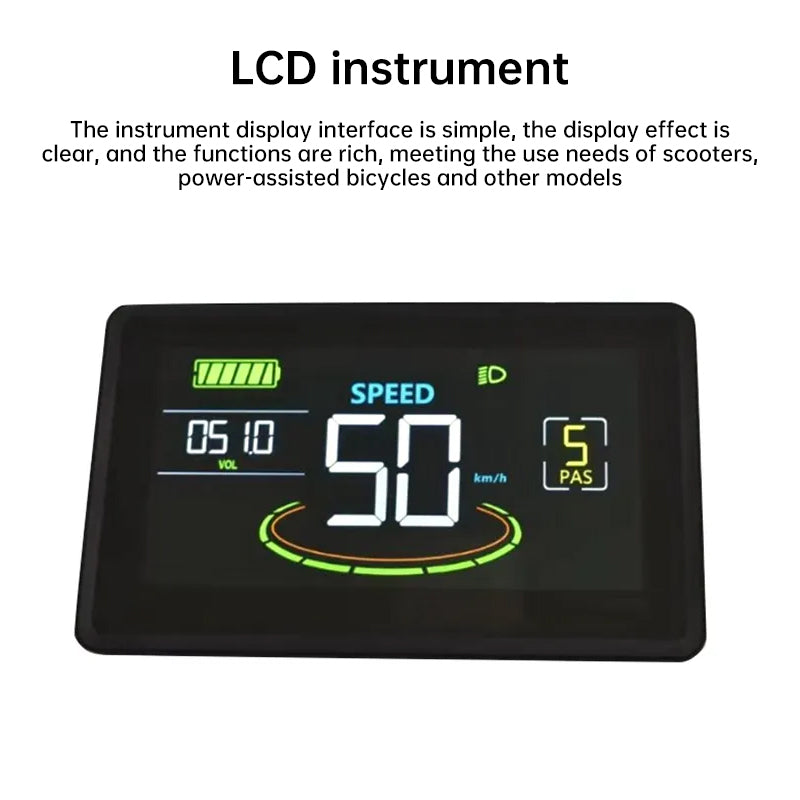

11. Functions

- Total mileage, single-trip mileage, running time, battery voltage

- Average speed, historical maximum speed, real-time speed

- Metric/imperial conversion, fault codes, brightness adjustment

- Remaining power, gear indication, etc.
